1. What is an IBC Tank Clamp Ring?
Let’s start with the basic. What is a clamp ring, and why should you care about it? Essentially, an IBC tank clamp ring is a circular or adjustable metal band that’s designed to secure the lid or cover of an Intermediate Bulk Container (IBC). The ring ensures that the contents of the tank stay where they belong, inside, while keeping outside contaminants far, far away.
Clamp rings come in a variety of materials, from stainless steel (ideal for food-grade applications) to zinc-plated or carbon steel (perfect for industrial heavy lifting). The choice depends on your tank’s task and its environment.
2. Types of IBC Tank Clamp Rings

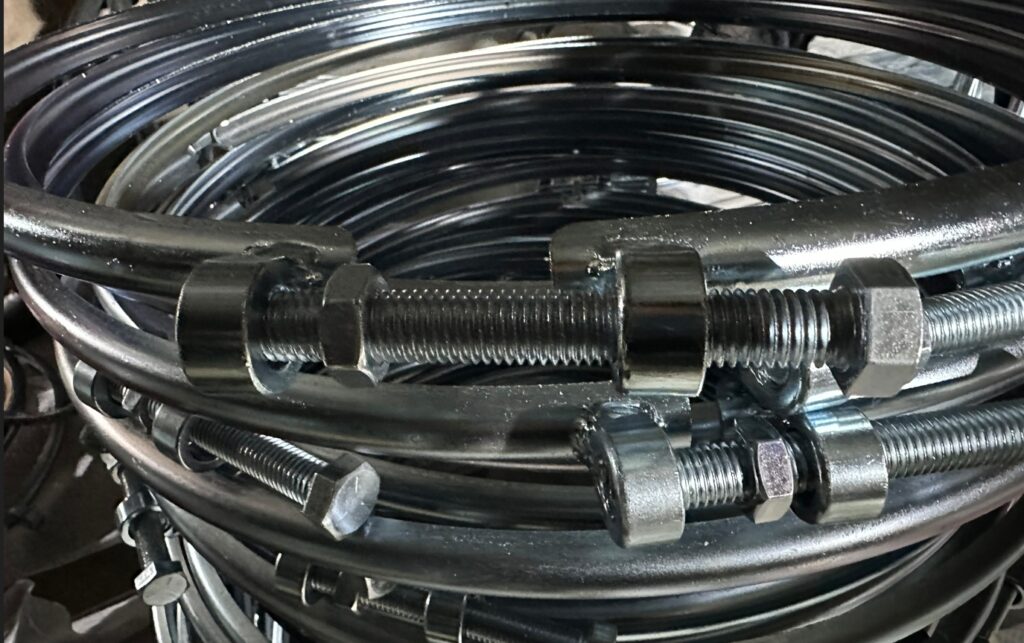

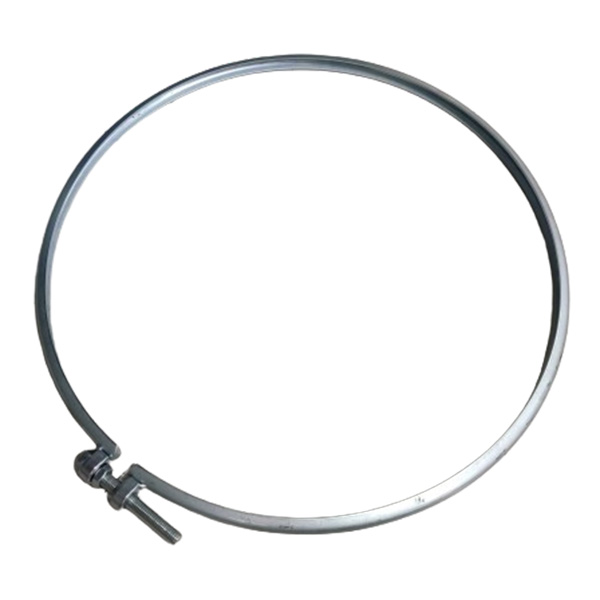

Bolted Clamp Rings
If lever locks are the sprinters, then bolted clamp rings are the marathon runners. These heavy-duty champs are designed for maximum seal integrity. With a bolt (or several) holding them in place, they can withstand high pressure and industrial-level jostling. Sure, they take a bit more time to secure, but the added security is worth it for those applications where leaks are not an option.
Usually, these bolted clamp rings are made from carbon steel or stainless steel, and the ring is constructed using a robust, 2.5mm-thick steel plate. The ears are welded directly to the ring, and one side features a threaded hole designed for a 5/8-inch bolt connection. In addition, the clamp is equipped with a locking nut to prevent the bolt from loosening during use.
The product boasts a smooth, burr-free surface, which offers excellent corrosion resistance and minimizes environmental impact. The IBC tank clamp ring is designed to have a high level of toughness and strength; thus, ensuring its durability and ease of installation. When it’s used in conjunction with a sealing gasket, the clamp effectively prevents the liquid leakage, making it a reliable choice for secure and efficient containment.

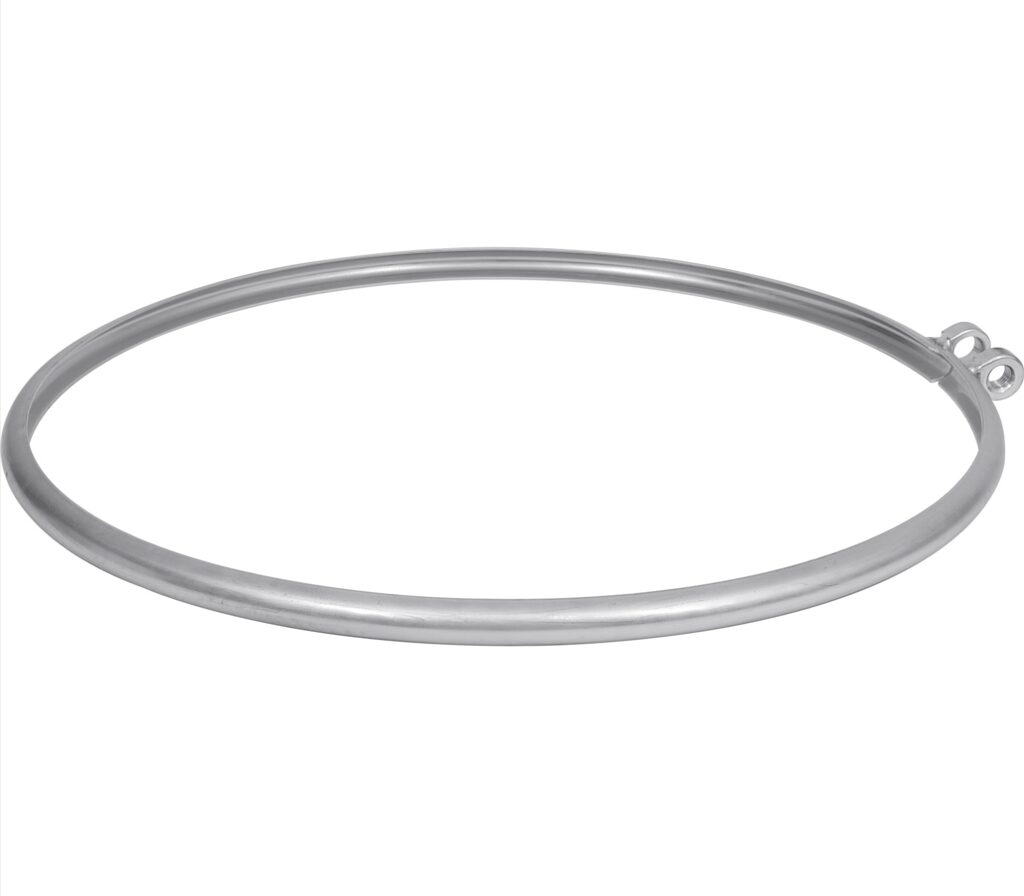

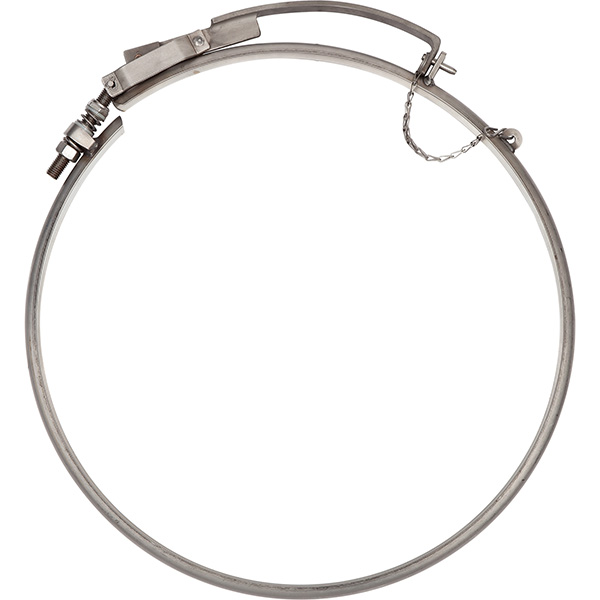

Lever Lock Clamp Rings
Think of these as the quick-release buckles of the clamp-ring world. They’re adjustable, easy to use and perfect for when you need a secure seal, but don’t want to spend all day fiddling with tools. Need to get that lid off quickly? Lever locks have got you covered. They’re also popular for food-grade tanks, where hygiene and speed are top priorities.
3. Clamp Ring Sizes: One Size does NOT Fit All
Clamp rings come in a variety of sizes, to accommodate the diverse range of IBC tank lids. The most common sizes range between 20 to 24 inches in diameter, with adjustable options available for flexibility. For example, a standard, lever-lock clamp ring might have an adjustable diameter of 22-1/2 inches, making it a perfect fit for tanks with slight variances in their lid sizes.
It is crucial to choose the correct size; not just for functionality but also for safety. A ring that’s too tight can damage the tank’s lid, and one that’s too loose risks leakage or even accidental detachment. Always check the specifications of your tank’s lid, and match it to the ring’s diameter and tensioning range, for the best results.
4. Design and Key Features: More than just a Metal Band
- Adjustable Sizes: Most clamp rings are made to fit a range of diameters, making them versatile across different tank models.
- Corrosion Resistance: Stainless steel rings, in particular, are the champions at fighting off rust and corrosion. This is especially important for tanks that are exposed to moisture or storing corrosive chemicals.
- Sealing Power: A good clamp ring ensures a tight, secure seal, preventing leaks that could turn your workplace into a slippery nightmare.
- Ease of Use: From lever locks to simple bolt adjustments, clamp rings are designed to save time without compromising safety.
5. Where Clamp Rings Save the Day: Applications across Industries
- Food and Beverage Industry: Have you ever wondered how your favorite juice or syrup stays fresh during transport? The clamp rings on the food-grade IBC tanks make that possible.
- Chemical and Pharmaceutical Storage: These industries rely on tanks that can handle sensitive, often hazardous materials. A strong, leak-proof clamp ring is non-negotiable.
- Agriculture: From fertilizers to liquid feed, clamp rings keep agricultural solutions stored securely and ready for use.
6. Choosing the Right Clamp Ring: A Buyer’s Checklist
- Material Matters: For corrosive environments, go with stainless steel. For general use, carbon steel or zinc-plated rings will do the trick.
- Match the Tank: Make sure the ring size of your clamp is compatible with your IBC lid or cover. This might sound obvious, but you’d be surprised how often this gets overlooked.
- Sealing Needs: If your application demands an ultra-tight seal, opt for bolted rings over lever locks.
- Budget vs. Durability: Stainless steel might cost a bit more upfront, but it pays off in its longevity, especially in tough environments
7. Maintenance Tips: Keep Your Clamp Ring in Top Shape
- Regular Inspections: Check for signs of wear, rust or damage, especially if your tank is exposed to harsh chemicals or outdoor conditions.
- Cleaning: For food-grade applications, clean your clamp ring regularly to prevent contamination. Warm water and a mild detergent are usually all you’ll need to do this.
- Tightness Check: Bolted rings can loosen over time, so make it a habit to tighten them as needed.
8. How to buy IBC tank clamp ring from Clampia
At Clampia, we specialize in the manufacture and sale of high-quality IBC tank clamp rings, which meet rigorous industry standards. Our products are designed with precision and durability in mind, thus ensuring a superior performance across multiple applications. Whether you’re in the food, chemical or agricultural industry, Clampia is committed to providing reliable solutions that are tailored to your needs.
Clampia provides excellent value, as it combines affordability with uncompromising quality. No matter where you are located, we can deliver our products to your doorstep, ensuring you have access to top-notch solutions wherever your business operates.
