Description
9mm bandwidth metal ring fuel hose clamp：
A fuel hose clamp is an important part of gasoline fuel injection systems. It’s used to secure fuel hoses in place and prevent fuel leakage.
This type of hose clamp is small, but it has a large impact on fuel system reliability, durability, and performance.
The fuel injection mini type hose clamp is designed to provide a tight fit across fuel lines without putting too much pressure on them that could potentially damage the hose. Its small size makes it ideal for engine bays with limited space.
In addition, these clamps are simple to install and can be adjusted or removed easily if necessary.
When selecting fuel injection hose clamps, look for those specifically designed for fuel injection use as they provide the highest levels of safety and performance.
Features & Benefits:
FOR STOPPING LEAKS – This mini type hose clamp is perfect for sealing fuel injection hoses and stopping leaks. It’s also effective for many other applications, making it a must-have for your toolbox.
EASY TO USE – The clamp is simple to install and can be tightened by hand. Plus, it’s lightweight and compact, making it easy to take with you wherever you go.
STURDY CONSTRUCTION – Made of durable metal, this clamp can withstand the test of time. It’s perfect for any job that requires a tight seal.
Available Material for Fuel Hose Clamp :
Galva. steel / AISI 304 / Food grade AISI 316

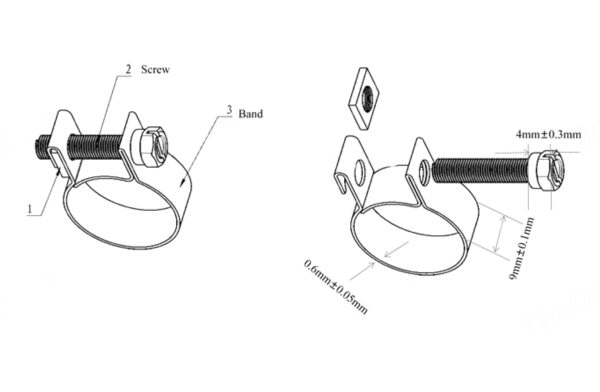

Specification:
| Size | Bandwidth*thickness | Pcs/Bag | Pcs/Ctn | Ctn SIze |
| 7-9 | 9*0.6 | 100 | 2000 | 38*27*11 |
| 8-10 | 9*0.6 | 100 | 2000 | 38*27*11 |
| 9-11 | 9*0.6 | 100 | 2000 | 38*27*11 |
| 10-12 | 9*0.6 | 100 | 2000 | 38*27*11 |
| 11-13 | 9*0.6 | 100 | 2000 | 38*27*14 |
| 12-14 | 9*0.6 | 100 | 2000 | 38*27*14 |
| 13-15 | 9*0.6 | 100 | 2000 | 38*27*16 |
| 14-16 | 9*0.6 | 100 | 2000 | 38*27*16 |
| 15-17 | 9*0.6 | 100 | 2000 | 38*27*16 |
| 16-18 | 9*0.6 | 100 | 2000 | 38*27*17 |
| 17-19 | 9*0.6 | 100 | 1000 | 38*27*11 |
| 18-20 | 9*0.6 | 100 | 1000 | 38*27*11 |
| 19-21 | 9*0.6 | 100 | 1000 | 38*27*11 |
| 20-22 | 9*0.6 | 100 | 1000 | 38*27*11 |
| 21-23 | 9*0.6 | 100 | 1000 | 38*27*14 |
| 22-24 | 9*0.6 | 100 | 1000 | 38*27*14 |
| 23-25 | 9*0.6 | 100 | 1000 | 38*27*14 |
| 24-26 | 9*0.6 | 100 | 1000 | 38*27*16 |
| 25-27 | 9*0.6 | 100 | 1000 | 38*27*16 |
| 26-28 | 9*0.6 | 100 | 1000 | 38*27*16 |
| 27-29 | 9*0.6 | 100 | 1000 | 38*27*17 |
| 28-30 | 9*0.6 | 100 | 1000 | 38*27*19 |
| 29-31 | 9*0.6 | 100 | 1000 | 38*27*19 |
| 30-32 | 9*0.6 | 100 | 1000 | 38*27*19 |
| 31-33 | 9*0.6 | 100 | 1000 | 38*27*19 |
| 32-34 | 9*0.6 | 100 | 1000 | 38*27*19 |
