Description

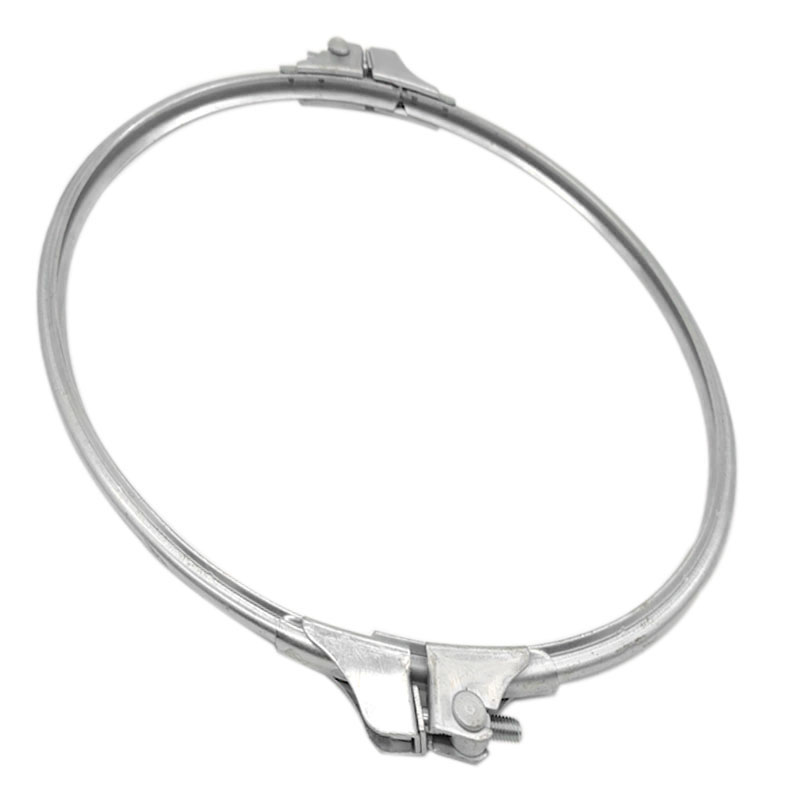

Jacob Tubing Quick Release Tube Clamp are a type of mechanical pipe coupling used to connect two pipes together in a secure and leak-proof manner. They consist of two identical metal housings, each with a gasket (or without) made of EPDM rubber that forms a seal when the housings are bolted together around the pipes.
Features & Benefits:
Some features of Jacob Tubing Quick Release Tube Clamp include:
- Easy Installation: The Jacob quick release clamp is easy to install and does not require any special tools or equipment. They can be installed quickly and easily by hand or with the help of a wrench.
- Leak-Proof: The EPDM rubber gasket provides a tight seal around the pipes, preventing any leaks or seepage of fluids.
- Corrosion Resistant: The metal housings of quick release clamps are made from high-quality materials such as carbon steel, stainless steel, which are resistant to corrosion and rust.
- Durable: These clamps are built to last and can withstand high levels of pressure and temperature, making them suitable for use in a wide range of industrial applications.
- Versatile: The clamps can be used to connect pipes of different materials, such as steel, aluminum, and plastic. They are also suitable for use with pipes of varying diameters.
- Cost-Effective: Compared to other types of pipe couplings, Jacob tubing quick release clamps are relatively inexpensive, making them a cost-effective solution for many industrial applications.
More information of Jacob Tubing Quick Release Tube Clamp :
| Diamter dimension | 80mm~630mm |
| Wall thickness | 1mm,1.5mm ,2mm or 3mm |
| Materials choice | Carbon steel with hot dipping or stainless steel 304 |
| Seal (or without) | NBR, EPDM or silicone rubber |

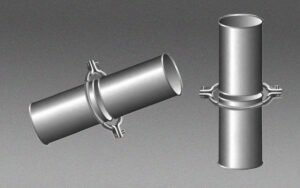

Application :
Jacob Tubing Quick Release Tube Clamp Specifications:
| Item ID | Diameter Ød | Thickness |
| (mm) | (mm) | (mm) |
| IAHQ80HD | 80 | 1.5 |
| IAHQ100HD | 100 | 1.5 |
| IAHQ120HD | 120 | 1.5 |
| IAHQ125HD | 125 | 1.5 |
| IAHQ140HD | 140 | 1.5 |
| IAHQ150HD | 150 | 1.5 |
| IAHQ160HD | 160 | 1.5 |
| IAHQ180HD | 180 | 1.5 |
| IAHQ200HD | 200 | 1.5 |
| IAHQ225HD | 225 | 1.5 |
| IAHQ250HD | 250 | 1.5 |
| IAHQ280HD | 280 | 1.5 |
| IAHQ300HD | 300 | 1.5 |
| IAHQ315HD | 315 | 1.5 |
| IAHQ350HD | 350 | 1.5 |
| IAHQ400HD | 400 | 1.5 |
| IAHQ450HD | 450 | 1.5 |
| IAHQ500HD | 500 | 1.5 |
| IAHQ550HD | 550 | 1.5 |
| IAHQ600HD | 600 | 1.5 |
| IAHQ630HD | 630 | 1.5 |
